current location：home page > product > Side channel Blowers > RBG Single Stage Side Channel Blowers > Airhank RBG 610 1D6B
Input voltage:
Rated power:
Maximum flow:
Power frequency:
50 Hz
Rated current:
8.5△/4.9Y A
Vacuum suction:
-180 mbar
Rated blowing force:
190 mbar
Motor speed:
2800 min-1
In and out caliber:
G2
Weight:
24 Kg
Noise（about）:
67 dB(A)

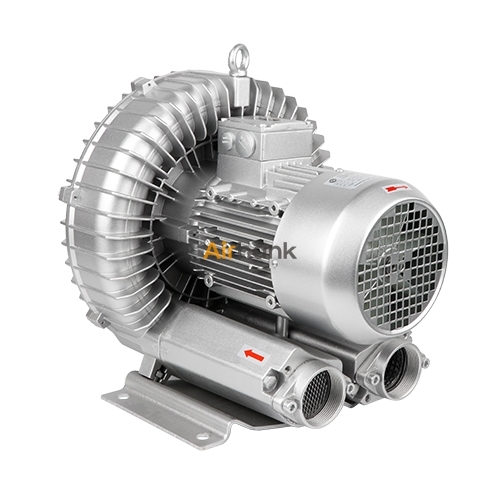

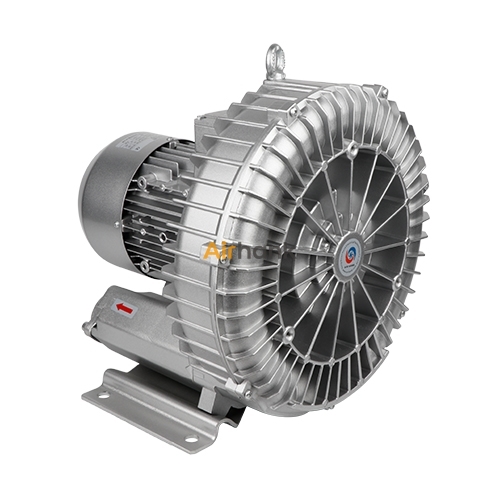

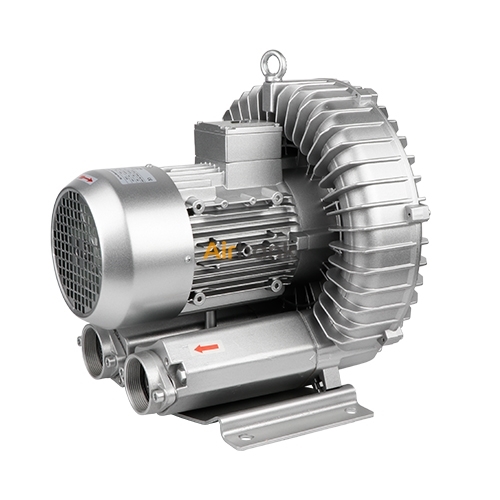

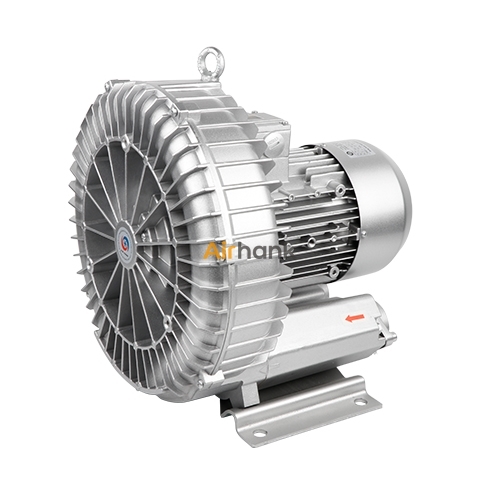

Airhank RBG 610 1D6B
Data download
Data download

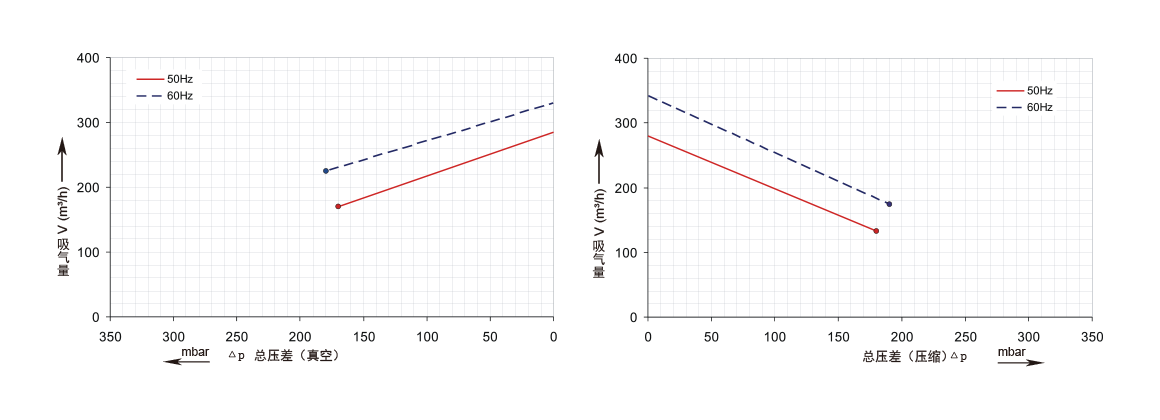

Characteristic curve
Performance data
| Technical parameter | RBG 610 1D6B | |
|---|---|---|
| Maximum flow | m3/h | 270 |
| Vacuum suction | mbar | -180 |
| Rated blowing force | mbar | 190 |
| Frequency | Hz | 50 |
| Voltage | V | △200-240/Y345-415 |
| Current consumption | A | 8.5△/4.9Y |
| Power | kW | 1.6 |
| Motor speed | min-1 | 2800 |
| Weight | Kg | 24 |
| Noise value | dB (A) | 67 |
Technical drawings
